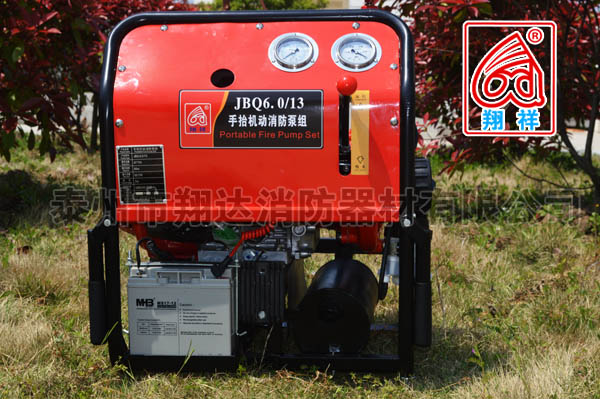

JBQ6.0/13手抬機動消防泵組
汽油機形式：
缸徑×行程：
排量：
|
型號名稱Name |
JBQ6.0/13-A手抬式機動消防泵組Portable Fire Pump Set |
|
發動機型式Engine Type |
四沖程雙缸風冷4-Stroke Double-Cylinder With Air-cooled |
|
大功率Power Output |
13KW |
|
啟動方式Starting Model |
電啟動/自回式手拉繩啟動 Electric/Recoil |
|
引水方式Suction Model |
旋片真空泵Vacuum Pump With Rotaional Piece |
|
吸深Suction Height |
≥7m |
|
大流量Max Flow Rate |
65T/H |
|
額定流量Rated Flow |
47T/H |
|
額定壓力Rated Power |
0.6Mpa |
|
揚程Lift |
60m |
|
進水口徑Inlet Diameter |
80mm |
|
出水口徑Outlet Diameter |
65mm |
|
質量N.W |
≤92kg |
|
體積Volume |
610×650×660mm |
|
發動機Engine：本田Honda |
|
